Three Phase Power Testing System , Automatic Capacitance Inductance Tester

Name: Three Phase Power Testing System Automatic Capacitance Inductance Tester
Brand: Sansion Power Electric
Price: 1 USD

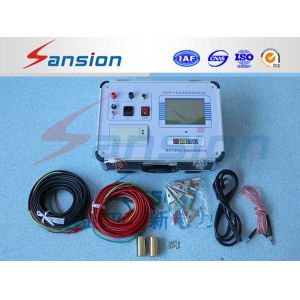

Quality Three Phase Power Testing System , Automatic Capacitance Inductance Tester for sale

Brand Name : Sansion Power Electric

Model Number : SXDR-G

Certification : ISO9001 SGS

Place of Origin : Wuhan, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Sets Per Month

Delivery Time : 5 Work Days

Packaging Details : Plywood Case

Type : Universal Testing Machine

Accuracy Grade : 0.5

Loading Method : Dynamic Load

Power Source : AC 110V/220V at Customized

Measuring Range : 0.5UF ~ 2,000UF

Transport Package : Plywood Case

Contact Now

Three Phase Power Testing System Capacitance Inductance Tester Automatic

General information:

SXDR-G Automatic Capacitance Inductance Tester is designed to on site detect on capacitance of substation capacitor.

Features:
Portable, easy to operate. High measuring accuracy.To detect capacitor without dismounting.Can measure inductance of reactor.LCD screen, build-in thermal printer.

Specifications:

Capacitance:	Measuring range: 0.5μF ~ 2,000μF
	Power measuring range: 5 ~ 20,000kvar
	Precision:±1.5% Read ±0.1μF
	Resolution: 0 ~ 1.999μF ±1.0%rdG 0 ~ 19.99μF ±1.0%rdG 0 ~ 199.9μF ±1.0%rdG 0 ~ 1999μF ±1.0%rdG
Current:	Current measuring range: 0~199.9mA 0~1.999A 0~19.99A 0~199.9A 0~1000A
Current:	Precision: ±1.5%
Inductance:	Inductance measuring range: Small inductance 1mH~10Mh Large inductance 4 mH~10H
	Precision:±(3% read±0.1mH)
	Resolution: 0.01mH
Power supply:	Rated voltage: power frequency 220V±10%
	Rated frequency: 50Hz
	Rated output: 22V/500VA
Working condition:	Environmental temperature: 0ºC ~ +40ºC
Working condition:	Relative humidity: ≤90%

Warranty: One year quality guarantee after shipment.

More details please kindly contact with Sansion Power.Thank you!

Product Tags:

power system test equipment

power supply test equipment

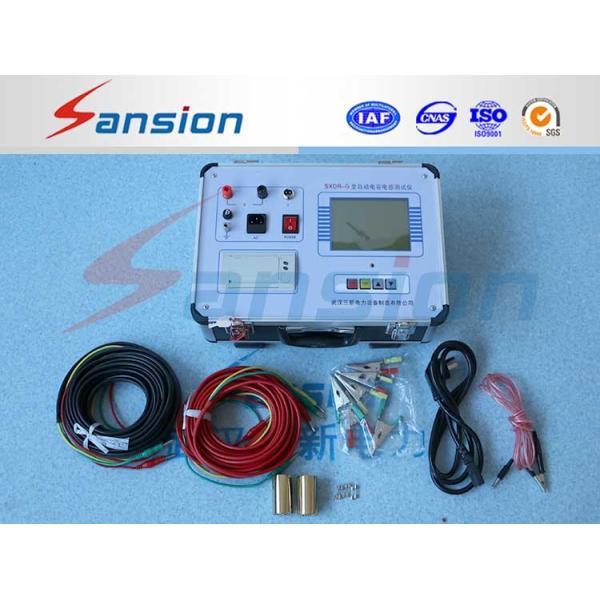

Three Phase Power Testing System , Automatic Capacitance Inductance Tester Images
